SAE J1850 VPW: Overview of the Vehicle Communication Protocol

Updated on

SAE J1850 VPW (Variable Pulse Width) is one of the OBD-II communication standards developed by SAE (Society of Automotive Engineers). The protocol is designed for reliable data exchange between electronic control units (ECUs) in a vehicle, using variable pulse width to transmit digital signals.

How Does SAE J1850 VPW Work?

SAE J1850 VPW uses variable pulse width to encode logical units (0 and 1) on a single-wire communication bus. The data transmission speed is 10.4 kb/s, which is sufficient for basic diagnostic functions, including sensor readings and DTC code retrieval.

Launch OBD-II adapters that support the protocol:

DBScar I, DBScar II, DBScar III, DBScar IV, DBScar V, DBScar VII

ThinkDiag devices that support the protocol:

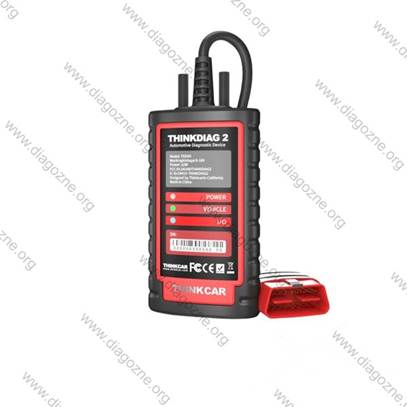

ThinkDiag, ThinkDiag 2

Ediag devices that support the protocol:

Ediag YA-101, Ediag YA-201, Ediag Plus, Ediag Elite

Vehicle types and brands supported by the protocol:

Passenger vehicles from American manufacturers, primarily GM vehicles: Chevrolet, GMC, Cadillac, Pontiac, Buick; models from 1996–2007.

Advantages of SAE J1850 VPW

  • Simple implementation and reliable communication
  • Resistance to electromagnetic interference, enhancing stability within the vehicle
  • Standardized for OBD-II, allowing basic diagnostics
  • Efficient for older vehicles that do not use the modern CAN protocol

Disadvantages and Limitations

  • Lower transmission speed compared to modern protocols like CAN
  • Limited functions for real-time monitoring and advanced diagnostics
  • Obsolete standard, replaced by newer communication protocols
  • Fewer compatible tools, as most modern OBD-II devices favor CAN and ISO standards

Applications of SAE J1850 VPW

SAE J1850 VPW is primarily used for reading and clearing DTC codes, reviewing sensor data, and performing basic ECU diagnostics in older vehicles. Although it is an older standard, understanding it is important for mechanics and technicians working with the full range of OBD-II systems.

Conclusion

SAE J1850 VPW is essential for understanding older vehicle communication systems. While modern protocols gradually replace it, knowledge of VPW remains valuable for diagnosing and maintaining older cars.
